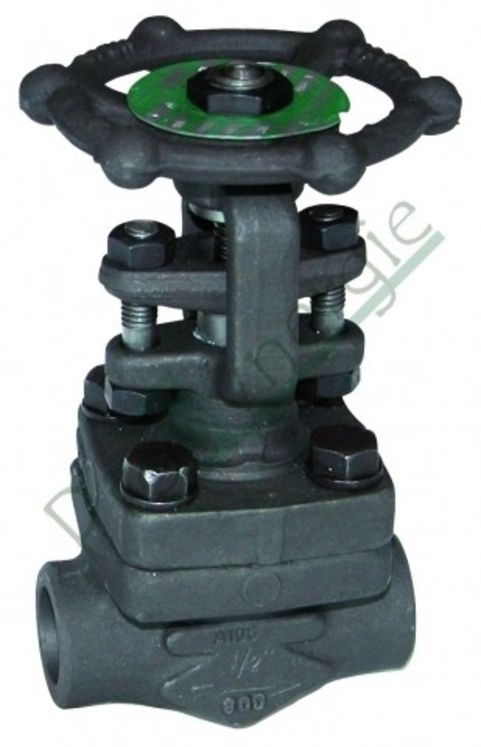

Corps Acier forgé A105 - Interne F6 - Soufflet Inox 321 - Siège stellité - 1/2 Stellité TRIM8
Presse étoupe Graphite - Passage réduit - Tige montante non tournante
Chapeau et presse étoupe boulonnés - Volant acier
Code article | Diamètre | Raccordement | Diamètre de passage (mm) | Pression Nominale (bar) | Température Mini (°C) | Température Maxi (°C) | Ecartement (mm) |
403004 |
1/2" |
NPT |
9 |
100 |
-29 |
425 |
80 |
403005 |
3/4" |
NPT |
13 |
100 |
-29 |
425 |
90 |
403006 |
1" |
NPT |
17,5 |
100 |
-29 |
425 |
110 |
403007 |
1"1/4 |
NPT |
22,5 |
100 |
-29 |
425 |
127 |
403008 |
1"1/2 |
NPT |
29,5 |
100 |
-29 |
425 |
155 |
403009 |
2" |
NPT |
35 |
100 |
-29 |
425 |
170 |
