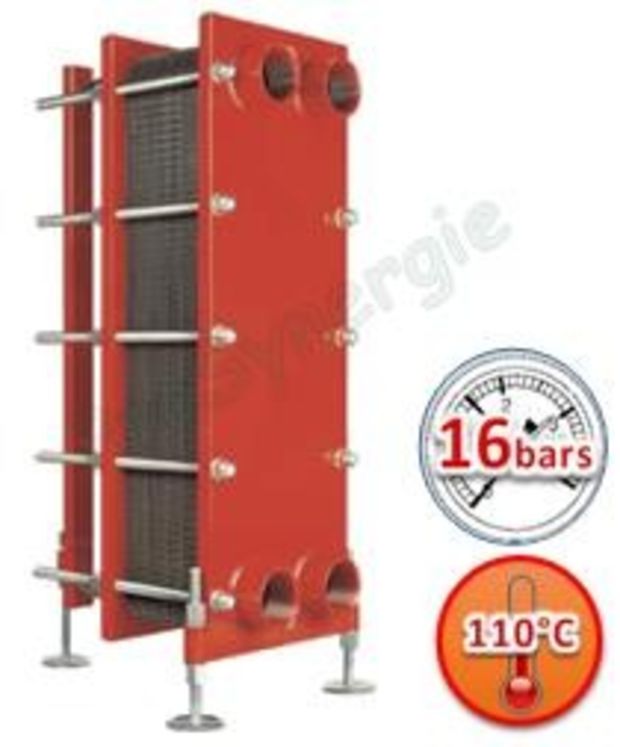

Echangeur Z4 16bars plaques Inox démontables joint EPDM 110°C - 90m3/h
Marque : Zilmet
Référence : ZIL1740612900
Appro. prévu sous 4 à 10 jours
/ Pièce
-
+
d'éco-contribution
En savoir plus
Caractéristiques techniques :
| Pression de service maximale | 16 bar |
| Température de service maximale | 110°C / 140°C |
| Matérial de plaques | Acier inoxydable 316 L |
| Matérial des raccords | Acier au fer ou Acier inoxydable 316 L en option |
| Raccords coté eau | 3" F |
| Joints | EPDM (110 °C) - NBR (110°C) en option |
| Nombre de plaques | 21 - 149 |
Poids et mesures :
| Art.Nr. | Nb. plaque(s) | Raccordement | Long. Racc. | Hauteur C | Largeur A | Distance D | Distance B | Epaisseur échangeur | Epaisseur Total | Ø Tirant | Surface d'échange (m²) | P (bar) service | P (bar) d'essais | Poid (Kg) |
| 1740602100 | 21 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 143.5 | 500 | M20 | 4.62 | 16 | 21 | 236.71 |
| 1740602300 | 23 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 150.5 | 500 | M20 | 5.06 | 16 | 21 | 239.26 |
| 1740602500 | 25 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 157.5 | 500 | M20 | 5.50 | 16 | 21 | 241.80 |
| 1740602700 | 27 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 164.5 | 500 | M20 | 5.94 | 16 | 21 | 244.34 |
| 1740602900 | 29 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 171.5 | 500 | M20 | 6.38 | 16 | 21 | 246.89 |
| 1740603100 | 31 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 178.5 | 500 | M20 | 6.82 | 16 | 21 | 249.43 |
| 1740603300 | 33 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 185.5 | 500 | M20 | 7.26 | 16 | 21 | 251.98 |
| 1740603500 | 35 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 192.5 | 500 | M20 | 7.70 | 16 | 21 | 254.52 |
| 1740603700 | 37 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 199.5 | 500 | M20 | 8.14 | 16 | 21 | 257.06 |
| 1740603900 | 39 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 206.5 | 500 | M20 | 8.58 | 16 | 21 | 259.61 |
| 1740604100 | 41 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 213.5 | 500 | M20 | 9.02 | 16 | 21 | 262.15 |
| 1740604300 | 43 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 220.5 | 500 | M20 | 9.46 | 16 | 21 | 264.70 |
| 1740604500 | 45 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 227.5 | 500 | M20 | 9.90 | 16 | 21 | 267.24 |
| 1740604700 | 47 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 234.5 | 500 | M20 | 10.34 | 16 | 21 | 269.78 |
| 1740604900 | 49 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 241.5 | 500 | M20 | 10.78 | 16 | 21 | 272.33 |
| 1740605100 | 51 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 248.5 | 500 | M20 | 11.22 | 16 | 21 | 274.87 |
| 1740605300 | 53 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 255.5 | 500 | M20 | 11.66 | 16 | 21 | 277.42 |
| 1740605500 | 55 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 262.5 | 500 | M20 | 12.10 | 16 | 21 | 279.96 |
| 1740605700 | 57 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 269.5 | 500 | M20 | 12.54 | 16 | 21 | 282.50 |
| 1740605900 | 59 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 276.5 | 500 | M20 | 12.98 | 16 | 21 | 285.05 |
| 1740606100 | 61 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 283.5 | 500 | M20 | 13.42 | 16 | 21 | 287.59 |
| 1740606300 | 63 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 290.5 | 500 | M20 | 13.86 | 16 | 21 | 290.14 |
| 1740606500 | 65 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 297.5 | 500 | M20 | 14.30 | 16 | 21 | 292.68 |
| 1740606700 | 67 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 304.5 | 500 | M20 | 14.74 | 16 | 21 | 295.22 |
| 1740606900 | 69 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 311.5 | 500 | M20 | 15.18 | 16 | 21 | 297.77 |
| 1740607100 | 71 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 318.5 | 500 | M20 | 15.62 | 16 | 21 | 300.31 |
| 1740607300 | 73 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 325.5 | 500 | M20 | 16.06 | 16 | 21 | 302.86 |
| 1740607500 | 75 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 332.5 | 500 | M20 | 16.50 | 16 | 21 | 305.40 |
| 1740607700 | 77 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 339.5 | 1000 | M20 | 16.94 | 16 | 21 | 307.94 |
| 1740607900 | 79 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 346.5 | 1000 | M20 | 17.38 | 16 | 21 | 310.49 |
| 1740608100 | 81 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 353.5 | 1000 | M20 | 17.82 | 16 | 21 | 313.03 |
| 1740608300 | 83 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 360.5 | 1000 | M20 | 18.26 | 16 | 21 | 315.58 |
| 1740608500 | 85 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 367.5 | 1000 | M20 | 18.70 | 16 | 21 | 318.12 |
| 1740608700 | 87 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 374.5 | 1000 | M20 | 19.14 | 16 | 21 | 320.66 |
| 1740608900 | 89 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 381.5 | 1000 | M20 | 19.58 | 16 | 21 | 323.21 |
| 1740609100 | 91 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 388.5 | 1000 | M20 | 20.02 | 16 | 21 | 325.75 |
| 1740609300 | 93 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 395.5 | 1000 | M20 | 20.46 | 16 | 21 | 328.30 |
| 1740609500 | 95 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 402.5 | 1000 | M20 | 20.90 | 16 | 21 | 330.84 |
| 1740609700 | 97 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 409.5 | 1000 | M20 | 21.34 | 16 | 21 | 333.38 |
| 1740609900 | 99 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 416.5 | 1000 | M20 | 21.78 | 16 | 21 | 335.93 |
| 1740610100 | 101 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 423.5 | 1000 | M20 | 22.22 | 16 | 21 | 338.47 |
| 1740610500 | 105 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 437.5 | 1000 | M20 | 23.10 | 16 | 21 | 343.56 |
| 1740610700 | 107 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 444.5 | 1000 | M20 | 23.54 | 16 | 21 | 346.10 |
| 1740610900 | 109 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 451.5 | 1000 | M20 | 23.98 | 16 | 21 | 348.65 |
| 1740611300 | 113 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 465.5 | 1000 | M20 | 24.86 | 16 | 21 | 353.74 |
| 1740611700 | 117 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 479.5 | 1000 | M20 | 25.74 | 16 | 21 | 358.82 |
| 1740612100 | 121 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 493.5 | 1000 | M20 | 26.62 | 16 | 21 | 363.91 |
| 1740612500 | 125 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 507.5 | 1000 | M20 | 27.50 | 16 | 21 | 369.00 |
| 1740612900 | 129 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 521.5 | 1000 | M20 | 28.38 | 16 | 21 | 374.09 |
| 1740613300 | 133 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 535.5 | 1000 | M20 | 29.26 | 16 | 21 | 379.18 |
| 1740613700 | 137 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 549.5 | 1000 | M20 | 30.14 | 16 | 21 | 384.26 |
| 1740614100 | 141 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 563.5 | 1000 | M20 | 31.02 | 16 | 21 | 389.35 |
| 1740614500 | 145 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 577.5 | 1000 | M20 | 31.90 | 16 | 21 | 394.44 |
| 1740614700 | 147 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 584.5 | 1000 | M20 | 32.34 | 16 | 21 | 396.98 |
| 1740614900 | 149 | 4 x Inox G 3"F | L=72mm | 1040 | 370 | 850 | 168 | 591.5 | 1000 | M20 | 32.78 | 16 | 21 | 399.53 |
