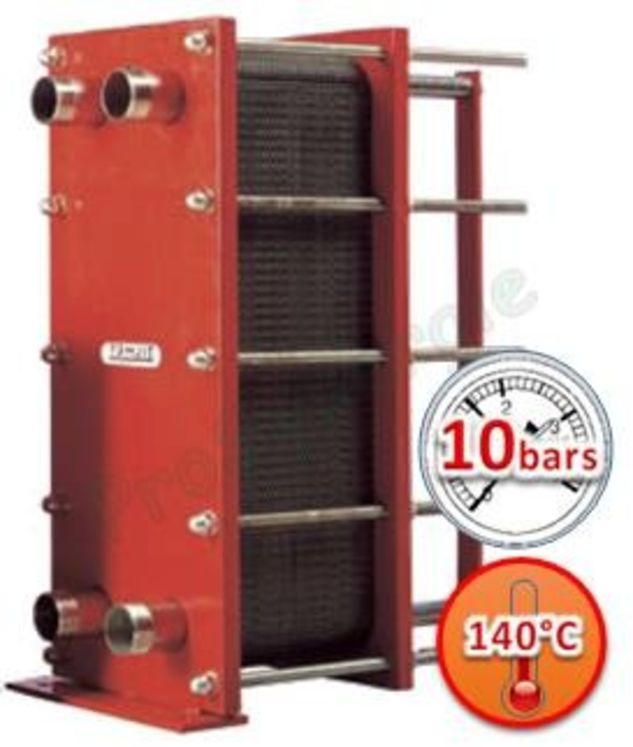

Echangeur Z3 10bars plaques Inox démontables joint EPDM 140°C - 39m3/h
Marque : Zilmet
Référence : ZIL1730303100
Appro. prévu sous 4 à 10 jours
/ Pièce
-
+
d'éco-contribution
En savoir plus
Caractéristiques techniques :
| Pression de service maximale | 10 bar |
| Température de service maximale | 110°C / 140°C |
| Matérial de plaques | Acier inoxydable 316 L |
| Matérial des raccords | Acier au fer ou Acier inoxydable 316 L en option |
| Raccords coté eau | 2" F |
| Joints | EPDM (110 °C) - NBR (110°C) en option |
| Nombre de plaques | 4 - 101 |
Poids et mesures :
| Art.Nr. | Nb. plaque(s) | Raccordement | Long. Racc. | Hauteur C | Largeur A | Distance D | Distance B | Epaisseur échangeur | Epaisseur Total | Ø Tirant | Surface d'échange (m²) | P (bar) service | P (bar) d'essais | Poid (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1730300700 | 7 | 4 x Inox G 2"M | L=75mm | 780 | 340 | 640 | 145 | 73.1 | 350 | M16 | 0.91 | 10 | 13 | 105.60 |
| 1730300900 | 9 | 4 x Inox G 2"M | L=75mm | 780 | 340 | 640 | 145 | 79.7 | 350 | M16 | 1.17 | 10 | 13 | 107.20 |
| 1730301100 | 11 | 4 x Inox G 2"M | L=75mm | 780 | 340 | 640 | 145 | 86.3 | 350 | M16 | 1.43 | 10 | 13 | 108.80 |
| 1730301300 | 13 | 4 x Inox G 2"M | L=75mm | 780 | 340 | 640 | 145 | 92.9 | 350 | M16 | 1.69 | 10 | 13 | 110.40 |
| 1730301500 | 15 | 4 x Inox G 2"M | L=75mm | 780 | 340 | 640 | 145 | 99.5 | 350 | M16 | 1.95 | 10 | 13 | 112.00 |
| 1730301700 | 17 | 4 x Inox G 2"M | L=75mm | 780 | 340 | 640 | 145 | 106.1 | 350 | M16 | 2.21 | 10 | 13 | 113.60 |
| 1730301900 | 19 | 4 x Inox G 2"M | L=75mm | 780 | 340 | 640 | 145 | 112.7 | 350 | M16 | 2.47 | 10 | 13 | 115.20 |
| 1730302100 | 21 | 4 x Inox G 2"M | L=75mm | 780 | 340 | 640 | 145 | 119.3 | 350 | M16 | 2.73 | 10 | 13 | 116.80 |
| 1730302300 | 23 | 4 x Inox G 2"M | L=75mm | 780 | 340 | 640 | 145 | 125.9 | 350 | M16 | 2.99 | 10 | 13 | 118.40 |
| 1730302500 | 25 | 4 x Inox G 2"M | L=75mm | 780 | 340 | 640 | 145 | 132.5 | 350 | M16 | 3.25 | 10 | 13 | 120.00 |
| 1730302700 | 27 | 4 x Inox G 2"M | L=75mm | 780 | 340 | 640 | 145 | 139.1 | 350 | M16 | 3.51 | 10 | 13 | 121.60 |
| 1730302900 | 29 | 4 x Inox G 2"M | L=75mm | 780 | 340 | 640 | 145 | 145.7 | 350 | M16 | 3.77 | 10 | 13 | 123.20 |
| 1730303100 | 31 | 4 x Inox G 2"M | L=75mm | 780 | 340 | 640 | 145 | 152.3 | 350 | M16 | 4.03 | 10 | 13 | 124.80 |
| 1730303300 | 33 | 4 x Inox G 2"M | L=75mm | 780 | 340 | 640 | 145 | 158.9 | 350 | M16 | 4.29 | 10 | 13 | 126.40 |
| 1730303500 | 35 | 4 x Inox G 2"M | L=75mm | 780 | 340 | 640 | 145 | 165.5 | 350 | M16 | 4.55 | 10 | 13 | 128.00 |
| 1730303700 | 37 | 4 x Inox G 2"M | L=75mm | 780 | 340 | 640 | 145 | 172.1 | 350 | M16 | 4.81 | 10 | 13 | 129.60 |
| 1730303900 | 39 | 4 x Inox G 2"M | L=75mm | 780 | 340 | 640 | 145 | 178.7 | 350 | M16 | 5.07 | 10 | 13 | 131.20 |
| 1730304100 | 41 | 4 x Inox G 2"M | L=75mm | 780 | 340 | 640 | 145 | 185.3 | 350 | M16 | 5.33 | 10 | 13 | 132.80 |
| 1730304300 | 43 | 4 x Inox G 2"M | L=75mm | 780 | 340 | 640 | 145 | 191.9 | 350 | M16 | 5.59 | 10 | 13 | 134.40 |
| 1730304500 | 45 | 4 x Inox G 2"M | L=75mm | 780 | 340 | 640 | 145 | 198.5 | 350 | M16 | 5.85 | 10 | 13 | 136.00 |
| 1730304700 | 47 | 4 x Inox G 2"M | L=75mm | 780 | 340 | 640 | 145 | 205.1 | 350 | M16 | 6.11 | 10 | 13 | 137.60 |
| 1730304900 | 49 | 4 x Inox G 2"M | L=75mm | 780 | 340 | 640 | 145 | 211.7 | 350 | M16 | 6.37 | 10 | 13 | 139.20 |
