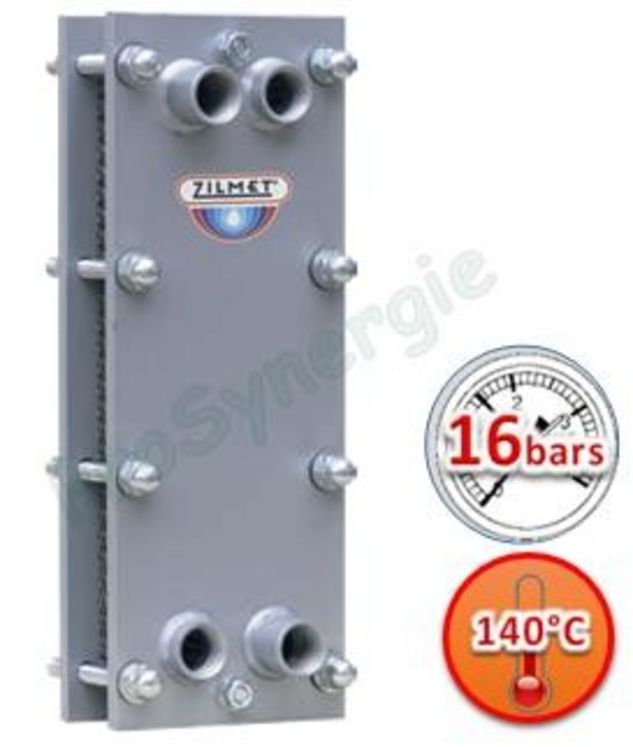

Echangeur Z2 16bars plaques Inox démontables joint EPDM 140°C - 15.3m3/h
Marque : Zilmet
Référence : ZIL1720603300
Appro. prévu sous 4 à 10 jours
/ Pièce
-
+
d'éco-contribution
En savoir plus
Caractéristiques techniques :
Pression de service maximale | 16 bar |
Température de service maximale | 110°C / 140°C |
Matérial de plaques | Acier inoxydable AISI 316 L |
Matérial des raccords | Acier au fer ou Acier inoxydable AISI 316 L en option |
Raccords coté eau | 1" F |
Joints | EPDM (110 °C) - NBR (110°C) en option |
Nombre de plaques | 7 - 55 |
Poids et mesures :
Art.Nr. | Nb. plaque(s) | Raccordement | Long. Racc. | Hauteur C | Largeur A | Distance D | Distance B | Epaisseur échangeur | Epaisseur Total | Ø Tirant | Surface d'échange (m²) | P (bar) service | P (bar) d'essais | Poid (Kg) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1720600700 | 7 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 49.7 | 120 | M14 | 0.24 | 16 | 21 | 20.39 |
1720600900 | 9 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 55.9 | 120 | M14 | 0.31 | 16 | 21 | 20.93 |
1720601100 | 11 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 62.1 | 120 | M14 | 0.37 | 16 | 21 | 21.47 |
1720601300 | 13 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 68.3 | 120 | M14 | 0.44 | 16 | 21 | 22.01 |
1720601500 | 15 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 74.5 | 150 | M14 | 0.51 | 16 | 21 | 22.55 |
1720601700 | 17 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 80.7 | 150 | M14 | 0.58 | 16 | 21 | 23.09 |
1720601900 | 19 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 86.9 | 150 | M14 | 0.65 | 16 | 21 | 23.63 |
1720602100 | 21 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 93.1 | 150 | M14 | 0.71 | 16 | 21 | 24.17 |
1720602300 | 23 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 99.3 | 240 | M14 | 0.78 | 16 | 21 | 24.71 |
1720602500 | 25 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 105.5 | 240 | M14 | 0.85 | 16 | 21 | 25.25 |
1720602700 | 27 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 111.7 | 240 | M14 | 0.92 | 16 | 21 | 25.79 |
1720602900 | 29 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 117.9 | 240 | M14 | 0.99 | 16 | 21 | 26.33 |
1720603100 | 31 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 124.1 | 240 | M14 | 1.05 | 16 | 21 | 26.87 |
1720603300 | 33 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 130.3 | 240 | M14 | 1.12 | 16 | 21 | 27.41 |
1720603500 | 35 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 136.5 | 240 | M14 | 1.19 | 16 | 21 | 27.95 |
1720603700 | 37 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 142.7 | 300 | M14 | 1.26 | 16 | 21 | 28.49 |
1720603900 | 39 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 148.9 | 300 | M14 | 1.33 | 16 | 21 | 29.03 |
1720604100 | 41 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 155.1 | 300 | M14 | 1.39 | 16 | 21 | 29.57 |
1720604300 | 43 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 161.3 | 300 | M14 | 1.46 | 16 | 21 | 30.11 |
1720604500 | 45 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 167.5 | 300 | M14 | 1.53 | 16 | 21 | 30.65 |
1720604700 | 47 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 173.7 | 300 | M14 | 1.60 | 16 | 21 | 31.19 |
1720604900 | 49 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 179.9 | 300 | M14 | 1.67 | 16 | 21 | 31.73 |
1720605100 | 51 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 186.1 | 300 | M14 | 1.73 | 16 | 21 | 32.27 |
1720605300 | 53 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 192.3 | 300 | M14 | 1.80 | 16 | 21 | 32.81 |
1720605500 | 55 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 198.5 | 300 | M14 | 1.87 | 16 | 21 | 33.35 |
