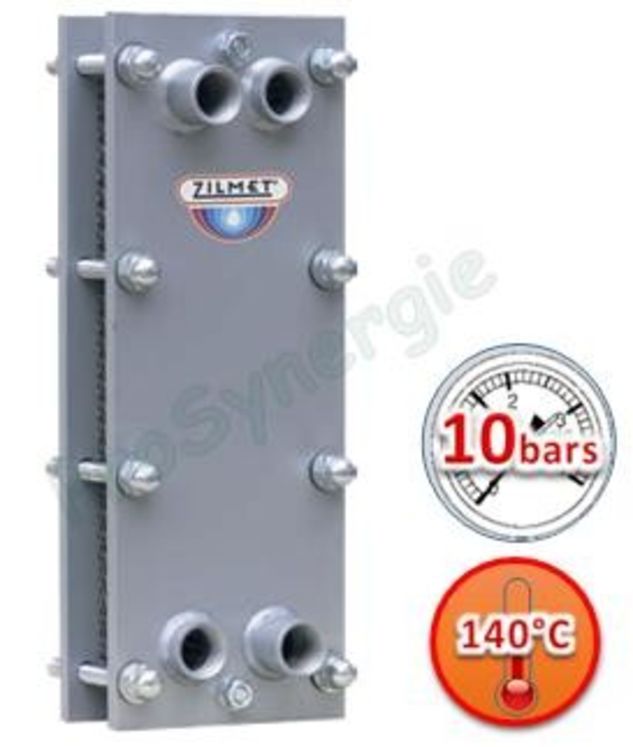

Echangeur Z2 10bars plaques Inox démontables joint EPDM 140°C - 15.3m3/h
Marque : Zilmet
Référence : ZIL1720301900
Appro. prévu sous 4 à 10 jours
/ Pièce
-
+
d'éco-contribution
En savoir plus
Caractéristiques techniques :
| Pression de service maximale | 10 bar |
| Température de service maximale | 110°C / 140°C |
| Matérial de plaques | Acier inoxydable AISI 316 L |
| Matérial des raccords | Acier au fer ou Acier inoxydable AISI 316 L en option |
| Raccords coté eau | 1" F |
| Joints | EPDM (110 °C) - NBR (110°C) en option |
| Nombre de plaques | 7 - 55 |
Poids et mesures :
| Art.Nr. | Nb. plaque(s) | Raccordement | Long. Racc. | Hauteur C | Largeur A | Distance D | Distance B | Epaisseur échangeur | Epaisseur Total | Ø Tirant | Surface d'échange (m²) | P (bar) service | P (bar) d'essais | Poid (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1720300700 | 7 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 45.7 | 120 | M14 | 0.24 | 10 | 13 | 18.19 |
| 1720300900 | 9 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 51.9 | 120 | M14 | 0.31 | 10 | 13 | 18.73 |
| 1720301100 | 11 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 58.1 | 120 | M14 | 0.37 | 10 | 13 | 19.27 |
| 1720301300 | 13 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 64.3 | 120 | M14 | 0.44 | 10 | 13 | 19.81 |
| 1720301500 | 15 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 70.5 | 150 | M14 | 0.51 | 10 | 13 | 20.35 |
| 1720301700 | 17 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 76.7 | 150 | M14 | 0.58 | 10 | 13 | 20.89 |
| 1720301900 | 19 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 82.9 | 150 | M14 | 0.65 | 10 | 13 | 21.43 |
| 1720302100 | 21 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 89.1 | 150 | M14 | 0.71 | 10 | 13 | 21.97 |
| 1720302300 | 23 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 95.3 | 240 | M14 | 0.78 | 10 | 13 | 22.51 |
| 1720302500 | 25 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 101.5 | 240 | M14 | 0.85 | 10 | 13 | 23.05 |
| 1720302700 | 27 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 107.7 | 240 | M14 | 0.92 | 10 | 13 | 23.59 |
| 1720302900 | 29 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 113.9 | 240 | M14 | 0.99 | 10 | 13 | 24.13 |
| 1720303100 | 31 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 120.1 | 240 | M14 | 1.05 | 10 | 13 | 24.67 |
| 1720303300 | 33 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 126.3 | 240 | M14 | 1.12 | 10 | 13 | 25.21 |
| 1720303500 | 35 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 132.5 | 240 | M14 | 1.19 | 10 | 13 | 25.75 |
| 1720303700 | 37 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 138.7 | 300 | M14 | 1.26 | 10 | 13 | 26.29 |
| 1720303900 | 39 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 144.9 | 300 | M14 | 1.33 | 10 | 13 | 26.83 |
| 1720304100 | 41 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 151.1 | 300 | M14 | 1.39 | 10 | 13 | 27.37 |
| 1720304300 | 43 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 157.3 | 300 | M14 | 1.46 | 10 | 13 | 27.91 |
| 1720304500 | 45 | 4 x Inox G 1"F | L=23/43mm (T2&T3/T1&T4) | 480 | 180 | 370 | 65 | 163.5 | 300 | M14 | 1.53 | 10 | 13 | 28.45 |
