Montage toutes positions.

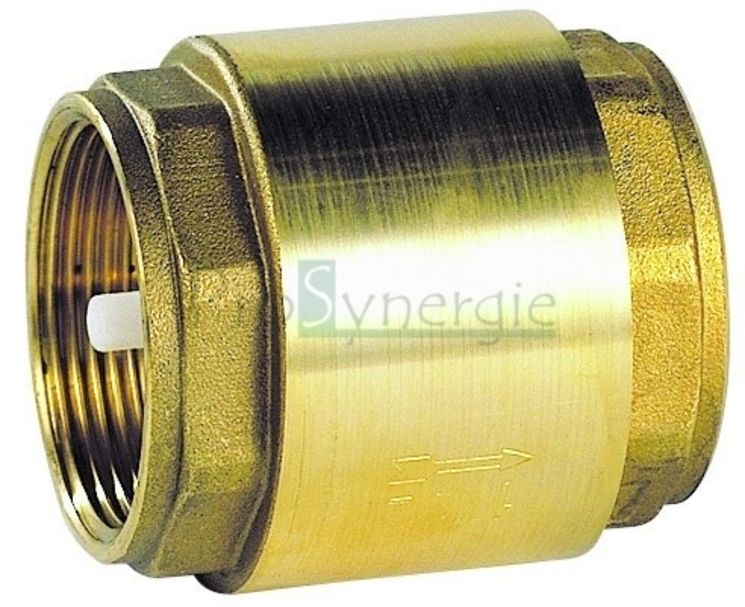

Respecter le sens de passage indiqué sur le corps par une flèche.
Code article | Diamètre | Raccordement | Pression Nominale (bar) | Température Mini (°C) | Température Maxi (°C) | Ecartement (mm) |
303003 |
3/8" |
BSP |
16 |
-10 |
110 |
45 |
303004 |
1/2" |
BSP |
16 |
-10 |
110 |
48 |
303005 |
3/4" |
BSP |
16 |
-10 |
110 |
53 |
303006 |
1" |
BSP |
16 |
-10 |
110 |
59 |
303007 |
1"1/4 |
BSP |
10 |
-10 |
110 |
66 |
303008 |
1"1/2 |
BSP |
10 |
-10 |
110 |
71 |
303009 |
2" |
BSP |
10 |
-10 |
110 |
80 |
303010 |
2"1/2 |
BSP |
8 |
-10 |
110 |
93 |
303011 |
3" |
BSP |
8 |
-10 |
110 |
104 |
303012 |
4" |
BSP |
8 |
-10 |
110 |
119 |
